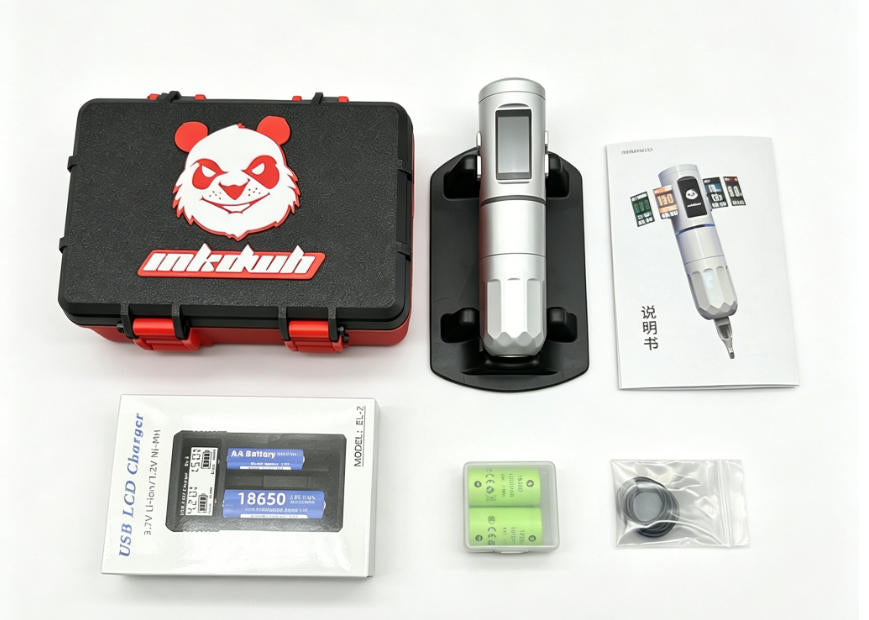

Tattoo Machine User Guide

Key Functions

Adjustment Keys

• + / – keys: Increase or decrease voltage/frequency.
• M key:
  • Single click: switch Soft / Medium / Hard or Voltage / Frequency.
  • Double click: switch between M1 / M2 / M3 modes.

Switch & Combinations

• Power & Start/Pause: Long press power, then click Start/Pause to switch.
• M + +: Switch display between timing / real-time machine current.
• M + –: Turn ambient light on/off.
• + & – (press 2 sec): Reset timing.

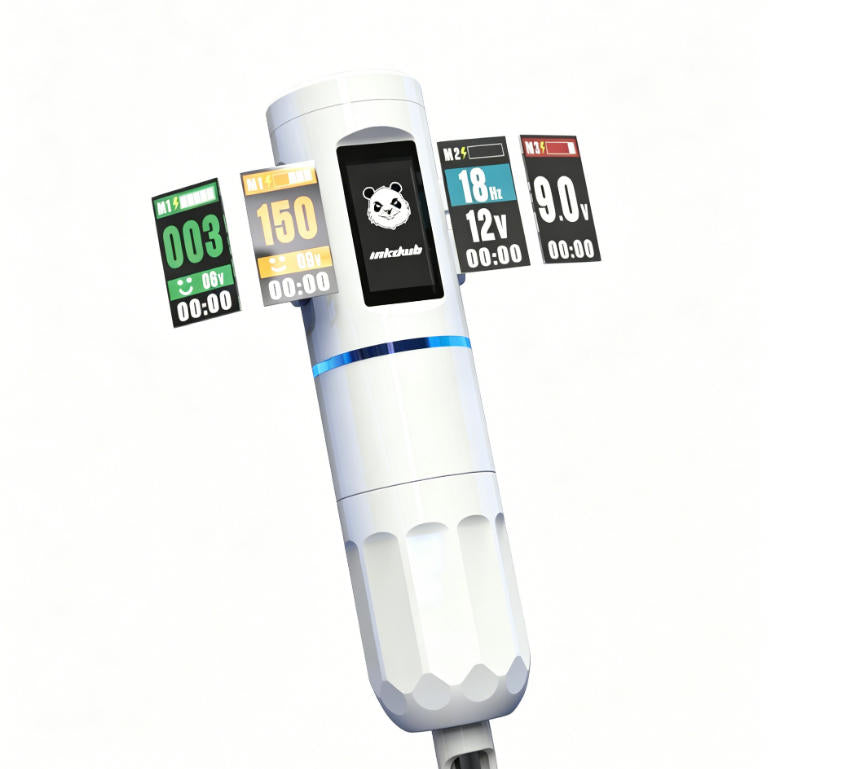

Mode Overview

M1 Mode – Softness Adjustment

• Frequency: 3–150 Hz.
• Click M to toggle Soft / Medium / Hard.
• Adjust motor torque via frequency to control softness.

M2 Mode – Voltage/Frequency Control

• Voltage: 5–12V, Frequency: 3–150 Hz.
• Click M to switch between voltage and frequency adjustment.
• Maximum frequency is limited by voltage (low voltage cannot drive high frequency).

M3 Mode – Traditional Voltage Drive

• Low voltage = low frequency, High voltage = high frequency.

How to Use

1. Power On: Long press power button.
2. Start: Click power button to start.
3. Switch Modes: Double-click M key.
   • M1: Single-click M to toggle Soft / Medium / Hard (Voltage: 6V / 9V / 12V).
   • M2: Single-click M to toggle voltage or frequency; adjust voltage to control power, adjust frequency to control speed.

Adjust Needle Frequency: Use + / – keys (display shows needles per second).

Error Handling

• Error Display: Indicates blockage or overcurrent.
• Automatic Protection: Machine powers off to protect electronics.
• Check: Ensure wheels are not stuck; resolve issues and restart by pressing power button.

Needle Adjustment

• Rotate grip to adjust needle length.
• Ensure needle orientation is consistent for better visibility and stability.

Timing

• Display in minutes: e.g., 01:22 = 1 hour 22 minutes.
• Removing battery does not clear recorded time.
• Reset timing: Press + & – simultaneously for 2 seconds.

Lighting

• Ambient Light: M + – keys to toggle.
• Battery Status:
  • Blue breathing light: normal battery
  • Orange flashing light: low battery

Recommended Parameters

Note: Hz = needle strokes per second.
In FM mode, higher voltage = greater torque.

Maintenance & Safety

1. One-year warranty for non-human damage. Contact official store for service.
2. Non-removable battery compartment. Do not disassemble.
3. Charge battery fully before long-term storage.

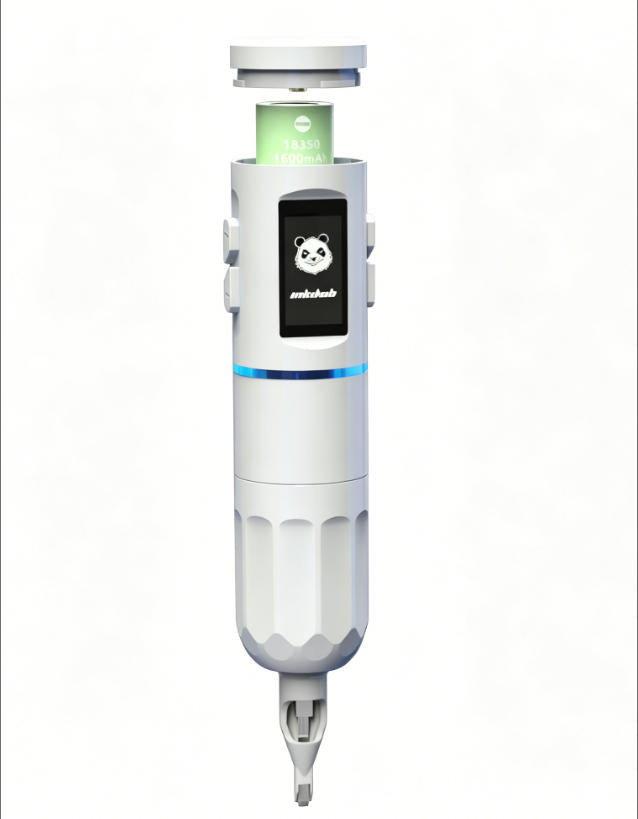

4. Use 18350 flat-head battery for replacements.
5. Fully charge battery before first use.
6. Remove needle and clean handle after use.
7. Ensure handle is completely dry before reuse.
8. If short circuit or battery protection occurs, restart machine.
9. Do not expose to liquid, extreme pressure, fire, or knife.
